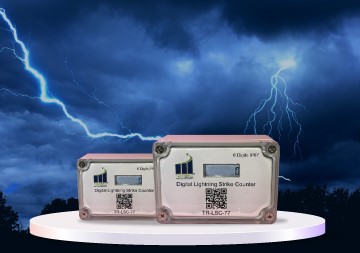

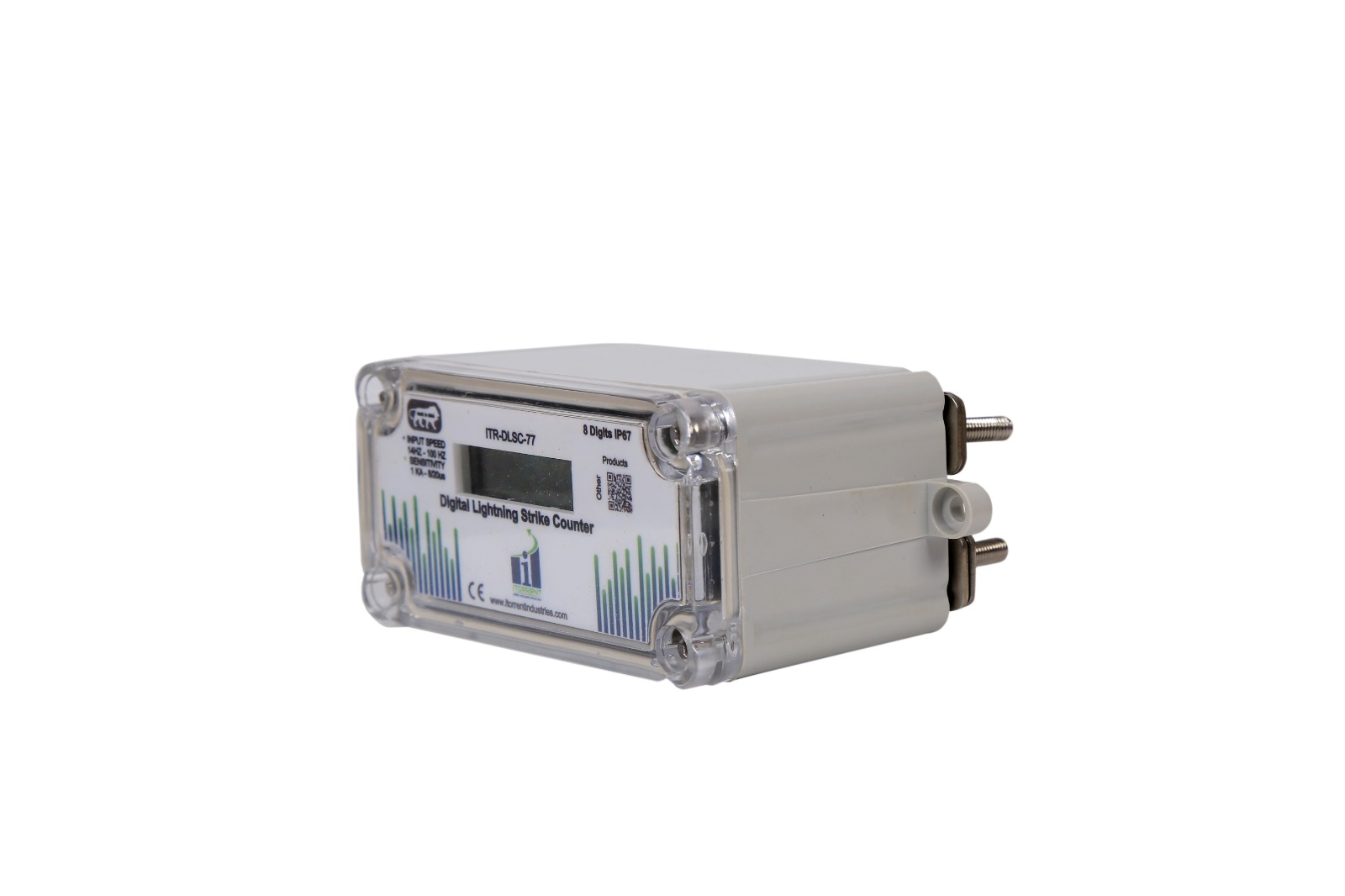

iTorrent Digital Lightning Strike Counter is designed for counting and recording lightning strikes arrested by iTorrent Lightning Protection Systems. Durable and long-living components make iTorrent a perfect complementary for lightning protection systems.
Fully compatible with standards | 5 years Warranty under iTorrent experience |
Displaying screen option 8 digits | Testable with iTorrent Testing Units Easy Application |
High Quality Plastic and Stainless Steel Material | - |
Technical Characteristics | |||
---|---|---|---|
Current Sensitivity | 500 A 8/20 ms impulse | Weight | 0.67 kg |
Operating Range | 1500 A, Max. 200kA 8/20 ms | Water Resistance | IP67 |
Displaying | Digital 6 Digits | Operating Temperature | -40~+85° C |
Dimensions (mm) | 100(D) x 68(H) x 70(W) | Count Number | 0-999999 times |
Type | Waterproof Lightning Strike Counter | Working Humidity | ≤95% |
Mounting/Connecting | Double 06-10 UV Plastic Cable or 50x5 mm tape |
